CruzPro CO60 Digital Compass Download User's Manual PDF NEW - Square CO60S NEW - Round CO60R CE Certified Waterproof front case

Specifications Operating Voltage: 9.5 - 33.0 VDC Current Drain: 0.018 amps nominal Display: 4 digit LCD, 5 levels of backlighting Data: Compass Heading External Outputs: NMEA 0183 serial Data Output: NMEA 0183 serial 4800 BAUD ($IIXDR sentence). $IIXDR,A,332,D,CO60*73 Size: 2.5" dia X 4.1" deep (61mm x 104mm) Mounting: 2-1/8" (55mm) round hole

CO60

You can program an angle offset to adjust the compass to provide a correct bearing. All information is automatically saved to non-volatile memory.

The CO60 outputs compass bearing on the standard NMEA 0183 serial data line at 4800 BAUD. This ASCII information can be used to log
performance or repeat the display information at a remote location on the CruzPro RP60, RP110 and MaxRp110 data repeaters
(see www.cruzpro.com/rp60.html, www.cruzpro.com/rp110.html and www.cruzpro.com/maxrp110.html).

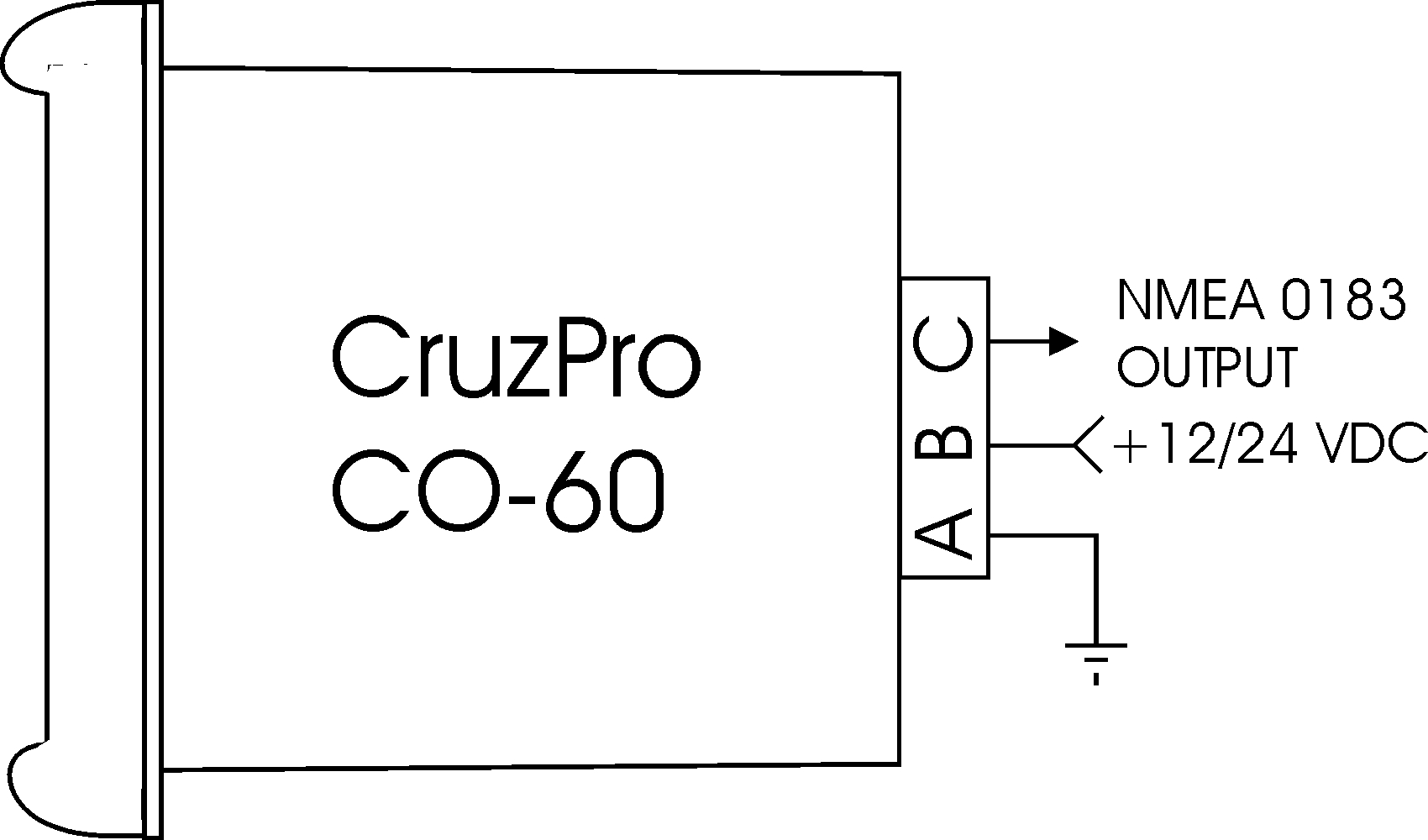

CO60 Connection Diagram
