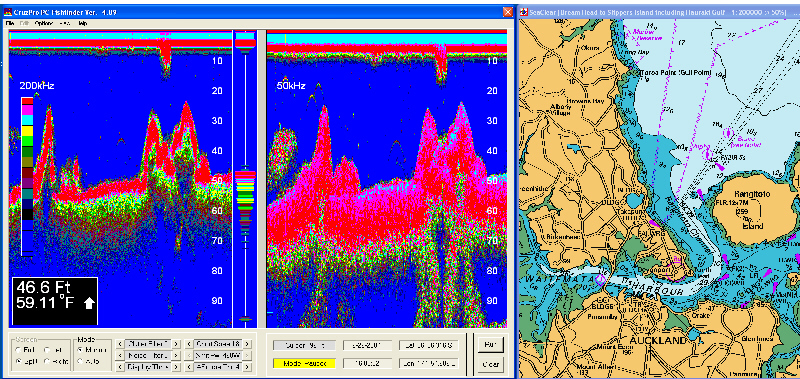

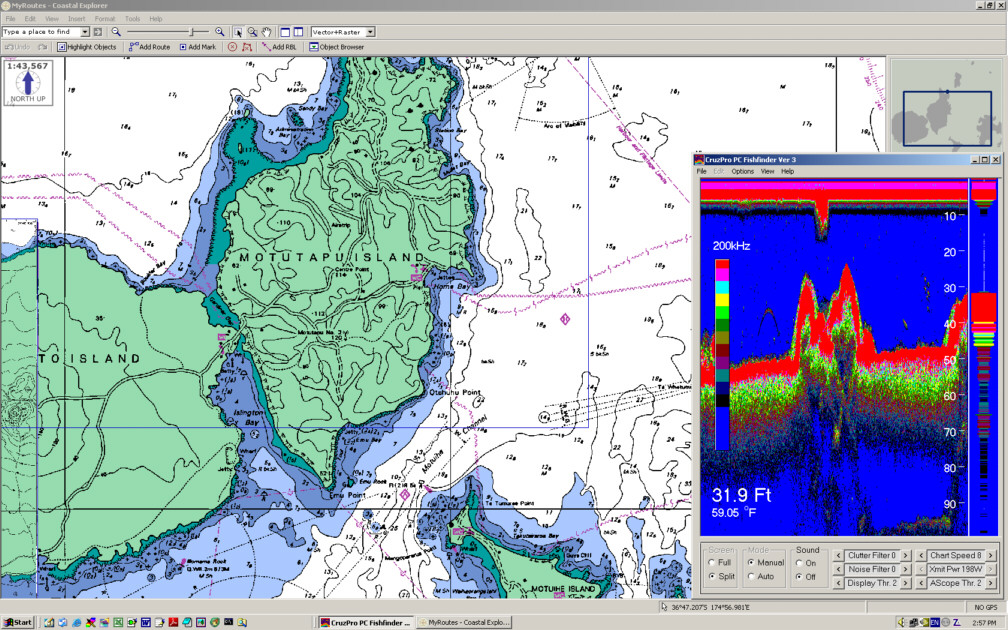

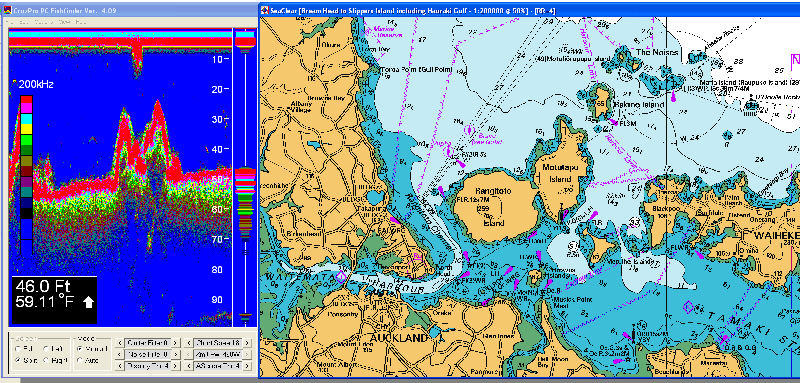

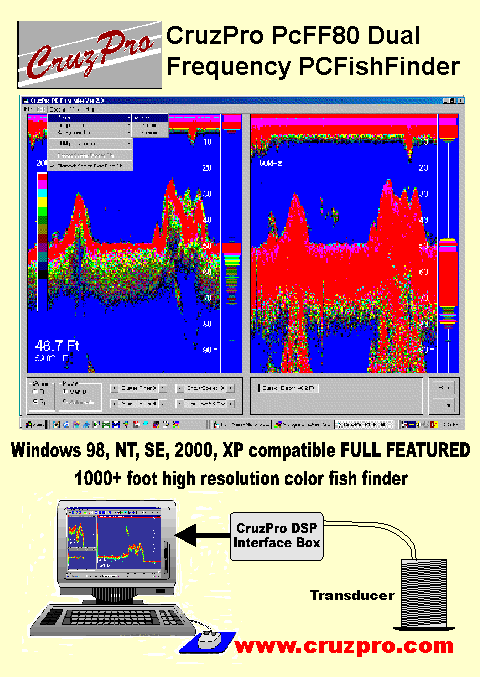

PcFF80 PC Based
Color Fishfinder

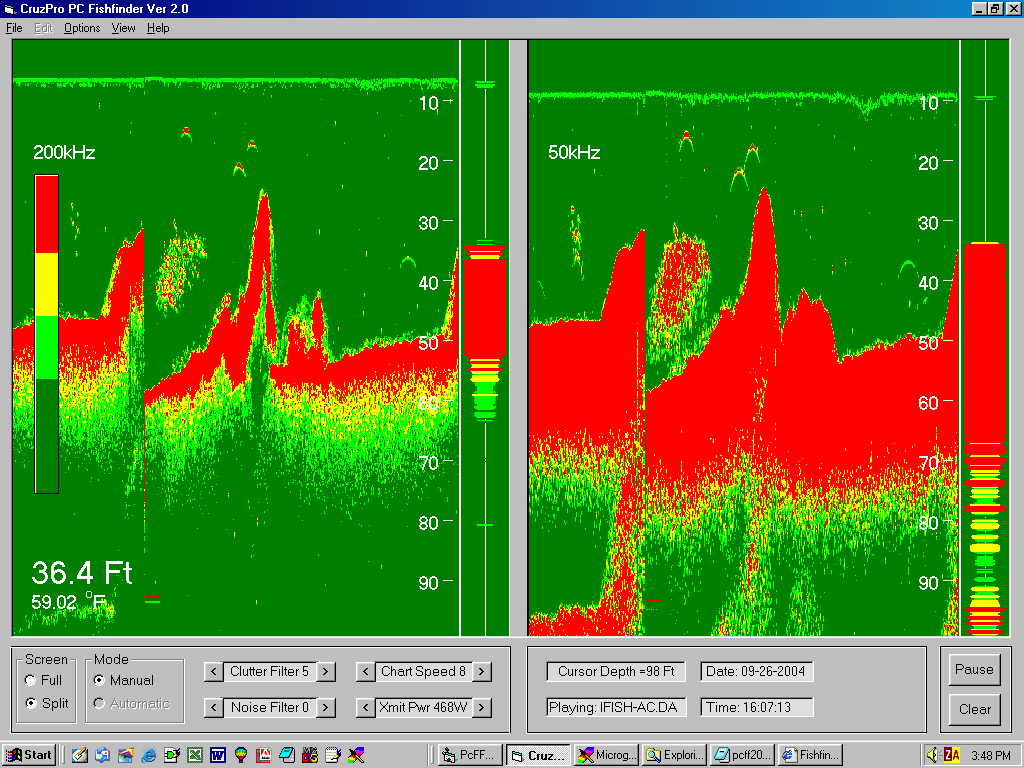

Click for bigger picture (200KB)
|
Specifications
- Operating Voltage:
- 9.5 to 16.0 VDC, 0.05 amps nominal,
- 4.7 amps peak at max power
- Output Power:
- 2560 watts peak-to-peak (320W RMS).
- 24KW DSP processed power (3200 WRMS)
- Depth Capability:
- 1000 feet or more at 200kHz for both shallow and deep water high resolution

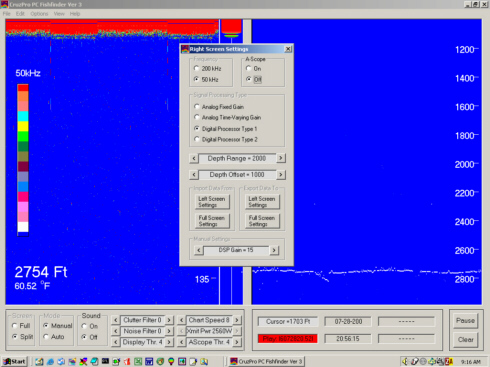

- 1500 Feet or more at 50kHz (See screenshot with PcFF80 working at 2750 feet)
- Operating temperature:
- 0 to 50 deg Celsius ( 32 to 122 deg Fahrenheit).
- Interface Box:
- 100 x 80 x 50 mm (4 x 3.2 x 2 inch).
- Powder Coated Aluminum Extrusion
- Communications Interface:
- RS-232, 115 KBaud, serial data
- USB 1.1 and USB 2.0 compatible (comes with both USB and RS232)
- Communications LED blinks activity
- Operating System/Hardware Requirements:
- WIN98 SE, NT, 2000, XP, Vista
- 500 Mhz Pentium PC (or better)
- Serial Port (16550 compatible UART) and/or USB
- 32MB RAM
- 50MB Hard Drive space
- SVGA Graphics (1024 x 768 resolution)
- Mouse / Keyboard
- Transducer:
- Dual Frequency 50/200kHz, Depth/Temperature, Glass reinforced nylon thru-hull with 30 foot (9.7M) cable.
Transom mount and bronze transducers also available.

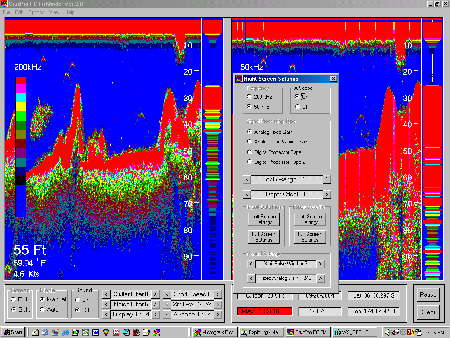

- Signal Processing:
- 2 analog and 2 Digital Processing (DSP) modes
- Analog Mode #1: Fixed gain
- Analog Mode #2: Time varying gain (TVG)
- DSP Mode #1: Using correlation
- DSP Mode #2: Using quadrature correlation
- Features:
- High resolution Color FishFinder
- 200kHz and 50Khz and water temperature
- Auto and Manual controls for depth
- Full manual control for gain, transmit power,
transmit pulse width, etc.

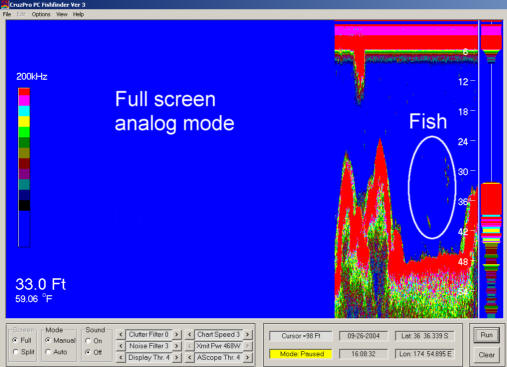

- Full or Split screen
- Six different depth ZOOM settings
- Record/Playback to/from files
- A-Scope (analog return signal strength)
- STD (standard display)
- Six Depth Ranges
- Six Depth Offsets (shifts)
- Manual & Auto Depth Shift
- 8 Selectable Chart Speeds
- 8 Selectable Noise filter settings
- 8 Selectable Clutter settings
- 5 Selectable Intensity Color pallets
- User programmable intensity color pallet

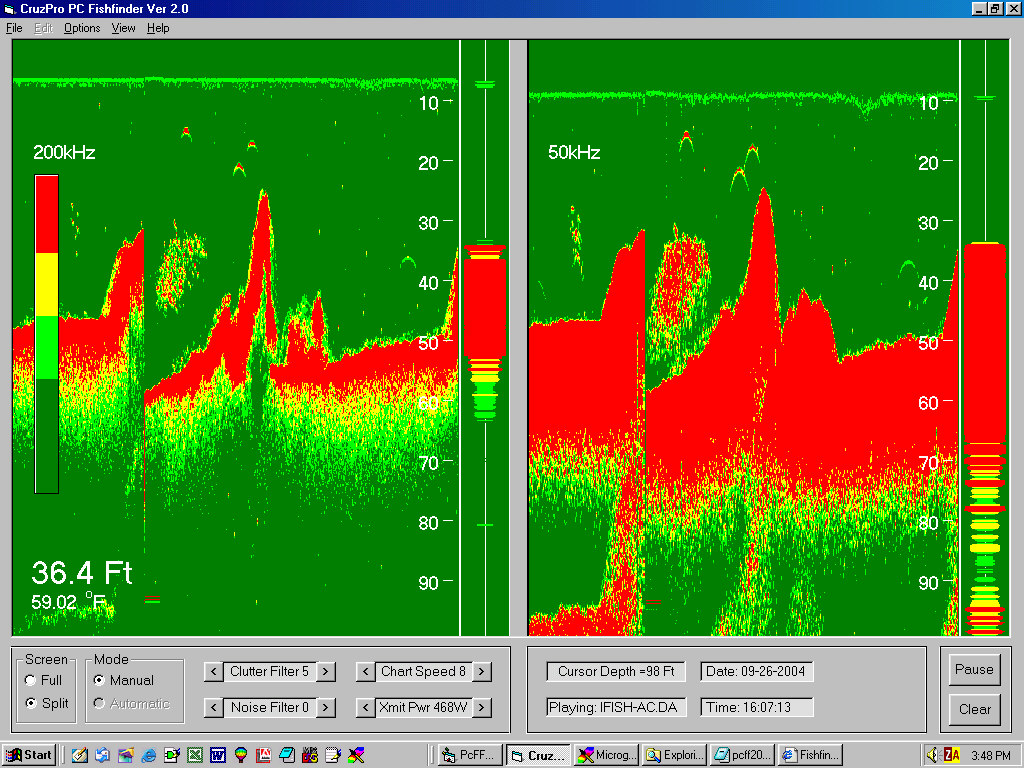

- 5 Selectable background colors

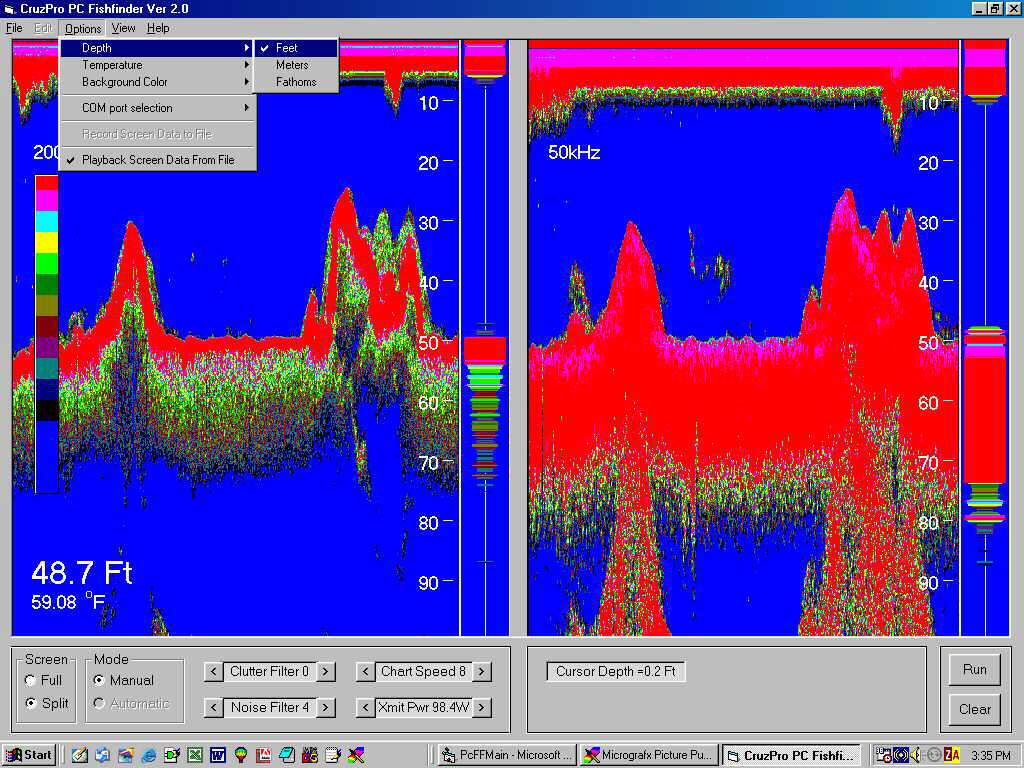

- Feet, Meter, Fathoms selection
- Degrees F and Degrees C Temperature selection
- Simple On-screen Temperature calibration
- "Speed-of-Sound" control for salt/fresh water
- Deep and Shallow water alarms
- Intelligent Fish alarm
- Anchor Drag alarm
- Both RS-232 Serial and USB control
- Adjustable Transmitter power
- Adjustable Receiver Gain
- Digital Cursor Readouts (Full and Split screens)
- Analog and DSP (Digital Signal Processing) control
- Depth Dependent Gain control
- Record/Playback Modes
- Built-in thermal shut-down protection
- Built-in self test functions
- Built-in POWER/communication activity LED
- GPS Latitude, Longitude and Ground Speed display, Logging and Playback
- Upgradeable software (via internet)
|
