Click here for: Larger 110x110mm (4" x 4") D110 depth sounder


CruzPro D60 1000 Foot+
DSP Depth Sounder with built-in alarms

Download User's Manual PDF

NEW - Square D60S D60 DSP Depth Sounder

NEW - Round D60R D60 DSP Depth Sounder

CE Certified for Europe

CE Certified

Waterproof front case


Specifications:

Operating Voltage:
9.5 - 16.0 VDC

Current Drain:
0.030 amps nominal

Operating Temperature:
32 to 122 deg F (0 to 50 C)

Display:
4 digit LCD, 5 levels of backlighting
Variable display damping

Data:
Depth 1.2 to 19.9 feet in tenths
and 20 - 1000+ feet full digits
or Metres, or Fathoms equivalent

Alarms:
Built-in 85 dB audible alarms
for shallow, deep and anchor drag

Keel Offset:
Adjustable -20.0 to +20.0 feet in tenths

Size:
2.5" dia X 4.1" deep (61mm x 104mm)

Mounting:
2-1/8" (55mm) round hole























THD-5 Long Stem Bronze Thru Hull Transducer
THD-5 long stem bronze thru-hull transducer THD-5 Dimensions
THD-5 long stem bronze transducer dimensions

D60/D30 Transducer Options (Available separately):


THD-1 Plastic Thru Hull Transducer
THD-1 Thru-hull plastic transducer THD-1 Dimensions
THD-1 Thru-hull plastic transducer

TMD-1 Transom Mount Transducer
TMD-1 Transom mount transducer TMD-1 Dimensions
TMD-1 Transom mount transducer dimensions

THD-4 Bronze Thru Hull Transducer
THD-4 Bronze thru-hull transducer THD-4 Dimensions
THD-4 bronze transducer dimensions

CruzPro D60

The D60 is a compact digital depth gauge. The D60 uses Digital Signal Processing (DSP) to reliably display water depth from 1.2 foot (0.4 Metre) to 1000+ feet (365 Metres). Depth can be displayed in feet, metres or fathoms. Variable display damping is provided.

The D60 has programmable shallow, deep and anchor drag alarms built-in and can display the depth in feet, metres or fathoms. A keel offset from -20.0 to +20.0 feet can be entered so the D60 shows the depth below the surface, below the keel or below the transducer.

The D60 uses Digital Signal Processing (DSP) to enable sensitivity never before found in such a low cost small sounder. The DSP also provides superior high speed rejection of false signals due to transducer slap (buffeting), surface turbulence, thermoclines, double bounce and is almost immune to other depth sounders and fishfinders operating near-by.

Five levels of backlighting can be selected for night-time viewing and all set-up constants are saved in a non-volatile memory.

Both through-hull and transom mount transducers are available separately for the D60.

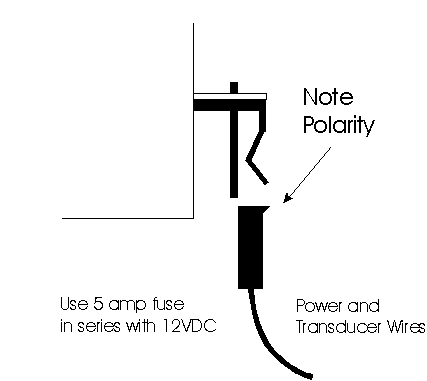

D60 Simple Connection Plug


D60 Simple Connection Plug
