CruzPro DSP Active Depth, Temperature Transducers with NMEA 0183 output

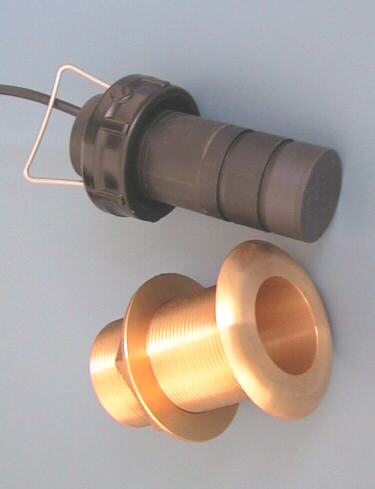

Bronze Thru-Hull Bronze thru-hull version

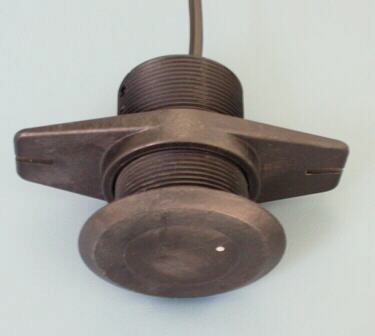

Plastic Thru-Hull Plastic thru-hull version

Plastic Transom Mount Plastic transom mount version

CE Certified for Europe

CE Certified


Specifications

Operating Voltage:
9.5 - 16.0 VDC

Current Drain:
0.035 amps nominal

Output power:
320 watts RMS

Equivalent processed power:
DSP power of 6400 watts

Depth:
1000 foot (300M) and 450 foot (140M) versions available

Water Temperature:
32 deg F (0 deg C) to 90 deg F (32 deg C)

Data Ouput:
NMEA 0183 serial 4800 BAUD, $SDDPT, $SDDBT, $SDMTW

Data:
$SDDPT,xxx.x,*CS (Depth in Meters)
$SDDBT,xxx.x,f,xxx.x,M,xxx.x,F*CS (Depth in Fathoms, Meters & Feet)
$SDMTW,xxx.x,C*CS (Water Temperature in Deg C)

Mounting:
Retractable bronze thru-hull
Fixed bronze thru-hull
Fixed plastic thru-hull
Plastic transom mount

Models:
1) ATT120A transom mount 450 ft
2) ATT120B transom mount 1000 ft
3) ATT120AT transom mount 450 ft with temperature
4) ATT120BT transom mount 1000 ft with temperature
5) ATU120A thru-hull 450 ft
6) ATU120B thru-hull 1000 ft
7) ATU120AT thru-hull 450 ft with temperature
8) ATU120BT thru-hull 1000 ft with temperature
9) ATB120A bronze thru-hull 450 ft
10) ATB120B bronze thru-hull 1000 ft
11) ATB120AT bronze thru-hull 450 ft with temperature
12) ATB120BT bronze thru-hull 1000 ft with temperatre

Active Depth/Temperature Transducers

The CruzPro DSP (Digital Signal Processing) active transducers output NMEA 0183 serial data of depth and water temperature. Numerous models suit most applications requiring NMEA $SDDPT, $SDDBT and $SDMTW depth/temperature data.

The DSP technology used by the CruzPro active transducers provide for reliable depth tracking to over 1000 feet (300M). The DSP technology also provides superior high speed operation by reducing the high speed ringing effects of transducer buffeting and slap.

These active transducers operate at 120khz to prevent interference with other nearby depth sounders and fishfinders and are immune to the effects of other depth sounders and fishfinders.

Just connect 12V to the 30 foot (9.7M) cable and connect the NMEA 0183 data wire to any NMEA compatible instrument, computer or NMEA data repeater. The ASCII NMEA 0183 information can be used to log depth and water temperature, repeat the display information at a remote location (see www.cruzpro.com/rp30.html, www.cruzpro.com/rp110.html or www.cruzpro.com/maxrp110.html).



Active Transducer Connection Diagram


Active Transducer Connection Diagram



Alternative Active Transducer Connection Diagram


Alternative Active Transducer Connection Diagram
